WW-C06 · Steel commercial wheels

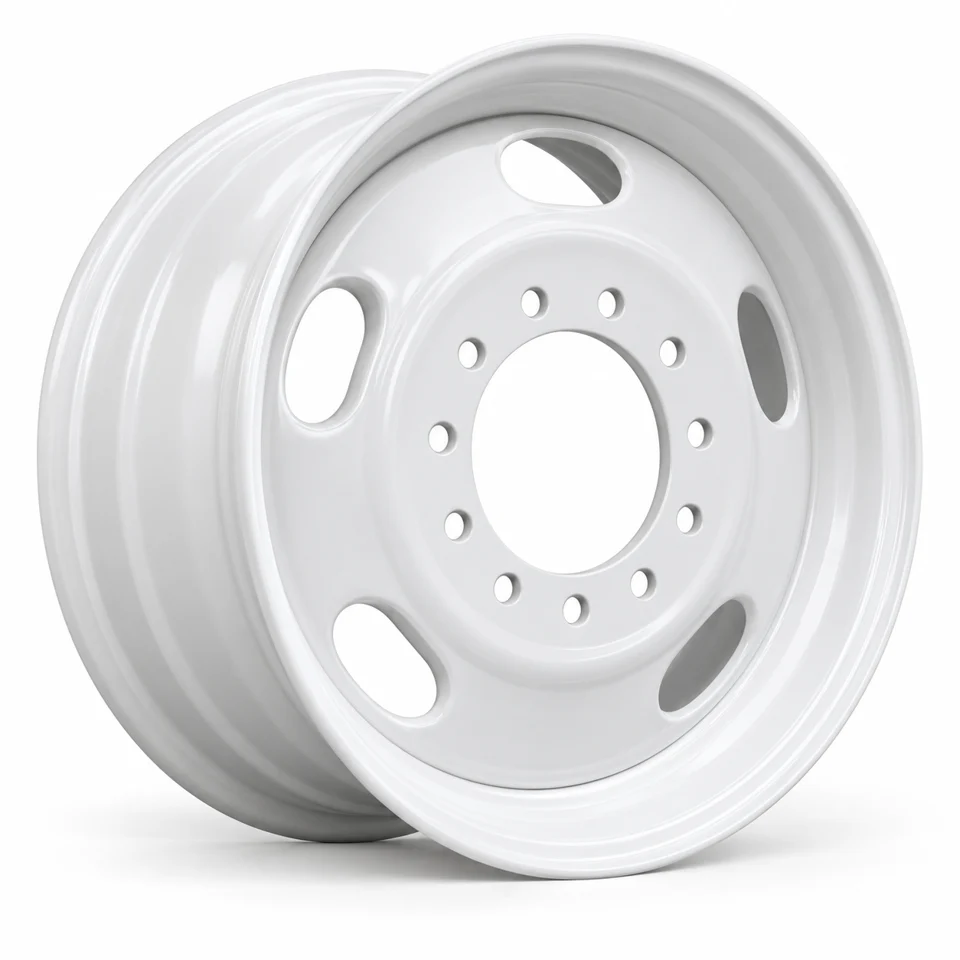

Hub-Piloted Steel Truck Wheel
Heavy trucks, trailers, transit and working fleets.
| Wheel / rim size | 22.5 x 8.25 in (571.5 x 209.55 mm) |
|---|---|
| Bolt pattern | 10 x 11.250 in (10 x 285.75 mm) |
| Pilot bore | 8.66142 in (220 mm) |
| Reference offset | 6.62 in (168.148 mm) |
Selection configuration; sample, load rating and fitment approval are required before order.
Construction & Material
Rolled steel rim and stamped disc joined by controlled welding.
Options
White, black or silver coating; validated corrosion protection.
Size options
Dimensions and mounting interface are confirmed against the approved model drawing.
Procurement Value
Established forming and welding processes suit high-volume fixed-SKU orders.
Mounting & Selection
Hub/stud pilot, bolt circle, bore, disc thickness, outset/inset, axle position, required wheel load and inflation pressure.
Standards & Qualification
FMVSS 120 applicability and rim markings; SAE J267 test program as applicable. No certification is asserted.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
